Description
Falkor Defense’s mission: To build world-class Actions that are designed, engineered, and manufactured to the most stringent aerospace standards in the world…period. To achieve that objective, every part is scrutinized for tolerance, and meticulously inspected to prove functionality. To achieve and maintain this type of quality, we manufacture our Actions “in-house” right here in Montana, using American made materials. Promising is one thing, proving is another.
Falkor Defense Actions are manufactured to AS9100 Aerospace standards to Falkor’s engineered drawings. AS9100 is a widely adopted and standardized quality management system for the aerospace industry. This means procedures, processes, and work instructions (including inspection) are developed and audited specifically for our Actions. Our inspection criteria includes Coordinate Measuring Machine (CMM) checks, and in-process inspection plans through all operations.

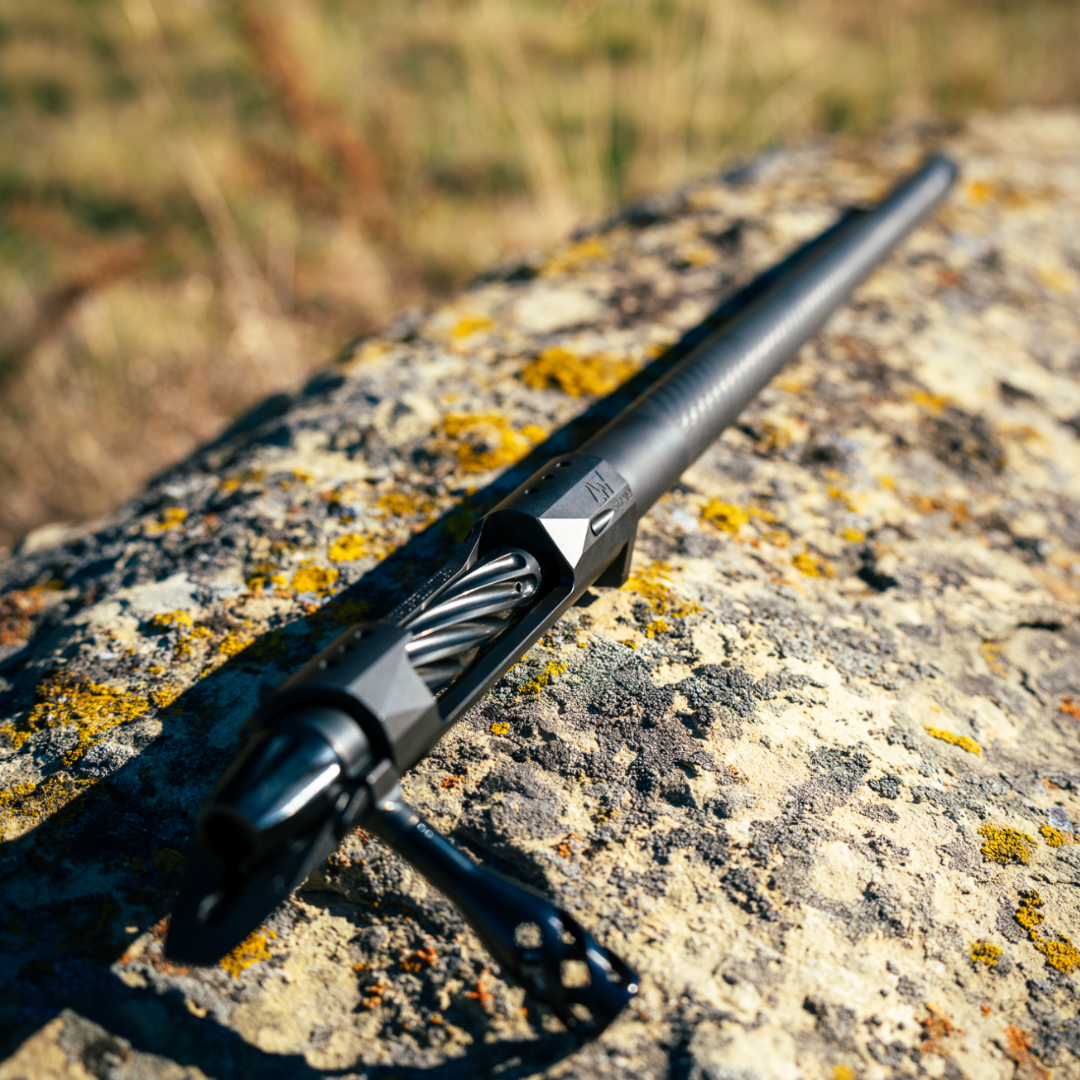

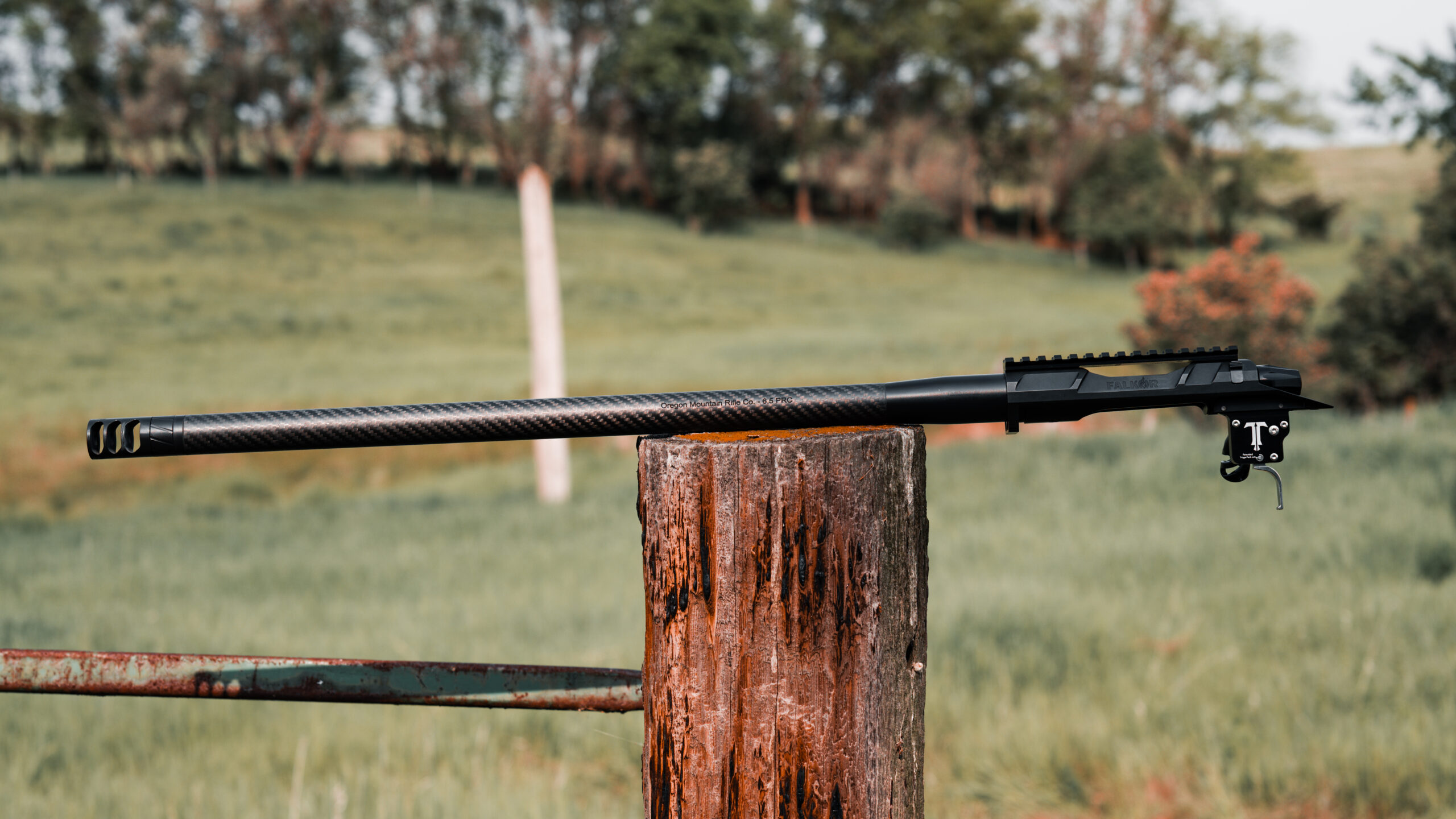

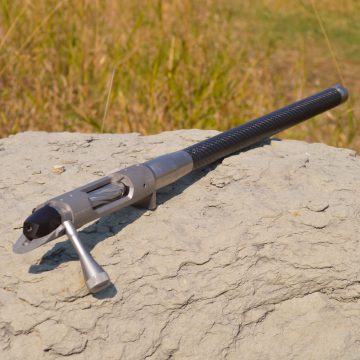

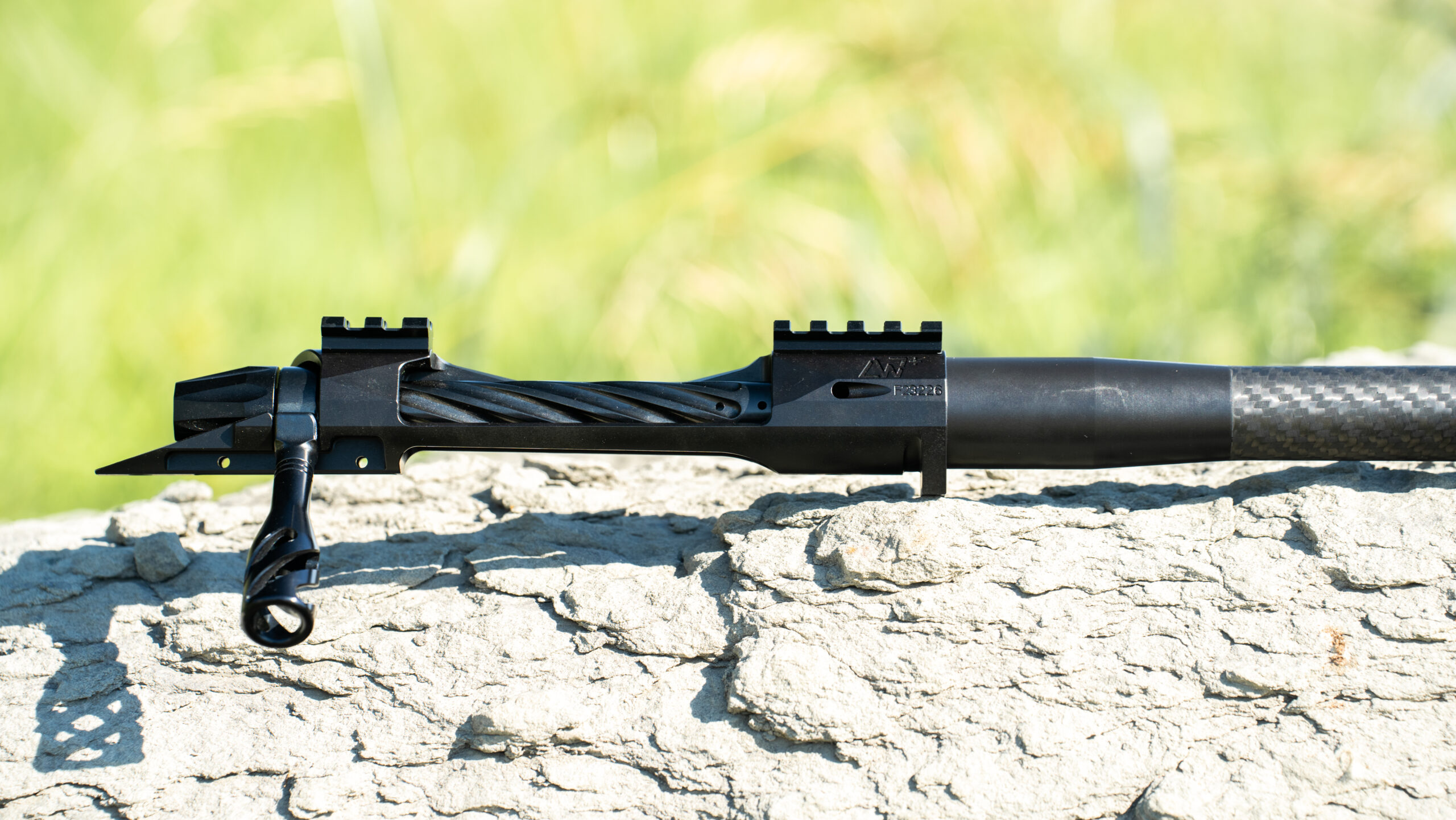

Falkor Defense LW7 Barreled Actions come fully assembled and head spaced to SAAMI specs, utilizing OMR’s Shouldered match grade carbon fiber prefit barrel.
Other calibers and configurations available upon request.
We Cerakote the exposed steel on barrel and brake and or muzzle cap (if added to your build) will be Cerakoted black to match the Falkor LW7. Action bolt will not be Cerakoted, as it is DLC coated.
All OMR custom barreled actions, ship free to your FFL in the Continental US Only. If you are in Alaska or Hawaii, there may be an additional fee to ship your barreled action.
ACTION SPECIFICATIONS
LW7 short action
- Billet short action receiver Remington 700TM footprint
- Nitride finish
- Wire EDM cut lug ways
- M16 style extractor
- Trigger mount 2 pin (.125)
- Integrated recoil lug
- Receiver machined from Prehardened 416ss
- Vertical side bolt release, that is much stronger than the standard horizontal
- Weight including bolt assembly: 19.7oz
- 1 1/16″×16 TPI barrel thread tenon
- Recoil lug thickness .260
- Recoil lug protrusion from action .230
- Feed Type: Push
- Ejection Port Length: 3.100”
- Over pressure safety: Directional Raceway Gas Port (9 O’clock)
- Firing Pin Material: prehardened 4140 Chrome Moly on a 7075 Aluminum Shank
- Firing Pin spring Force 20lbs
- One piece bolt machined from 4340 chrome moly
- Fluted bolt to allow debris to be removed from lug ways
- Changeable bolt knobs
- Plunger ejector
- Recessed bolt nose
- 2 lug 90 degree throw
- 2 piece 20 MOA scope rail included
- Scope mounting holes are compatible with Defiance hole spacing.
LW7 Long action
- Billet Long action receiver Remington 700TM footprint
- Nitride finish
- Wire EDM cut lug ways
- M16 style extractor
- Trigger mount 2 pin (.125)
- Integrated recoil lug
- Receiver machined from Prehardened 416ss
- Vertical side bolt release, that is much stronger than the standard horizontal
- Weight including bolt assembly: 21.4oz
- 1 1/16″×16 TPI barrel thread tenon
- Recoil lug thickness .260
- Recoil lug protrusion from action .230
- Feed Type: Push
- Ejection Port Length: 3.900”
- Over pressure safety: Directional Raceway Gas Port (9 O’clock)
- Firing Pin Material: prehardened 4140 Chrome Moly on a 7075 Aluminum Shank
- Firing Pin spring Force 20lbs
- One piece bolt machined from 4340 chrome moly
- Fluted bolt to allow debris to be removed from lug ways
- Changeable bolt knobs
- Plunger ejector
- Recessed bolt nose
- 2 lug 90 degree throw
- 2 piece 20 MOA scope rail included
- Scope mounting holes are compatible with Defiance hole spacing.
Falkor Defense Barreled Action Weights (examples)
- S/A Mag, 22 Creedmoor, 20″, 5/8″-24″-28TPI muzzle threads w/ stainless brake: 4lbs 2oz
Lead times are based on several factors: component availability, time of year, current customer orders, and manufacturers’ lead times. On average, you can expect a 3-5 month build time on a Long Action, and 1-2 month build time on a Short Action. We work extremely hard to get your barreled action out in a reasonable time frame.
