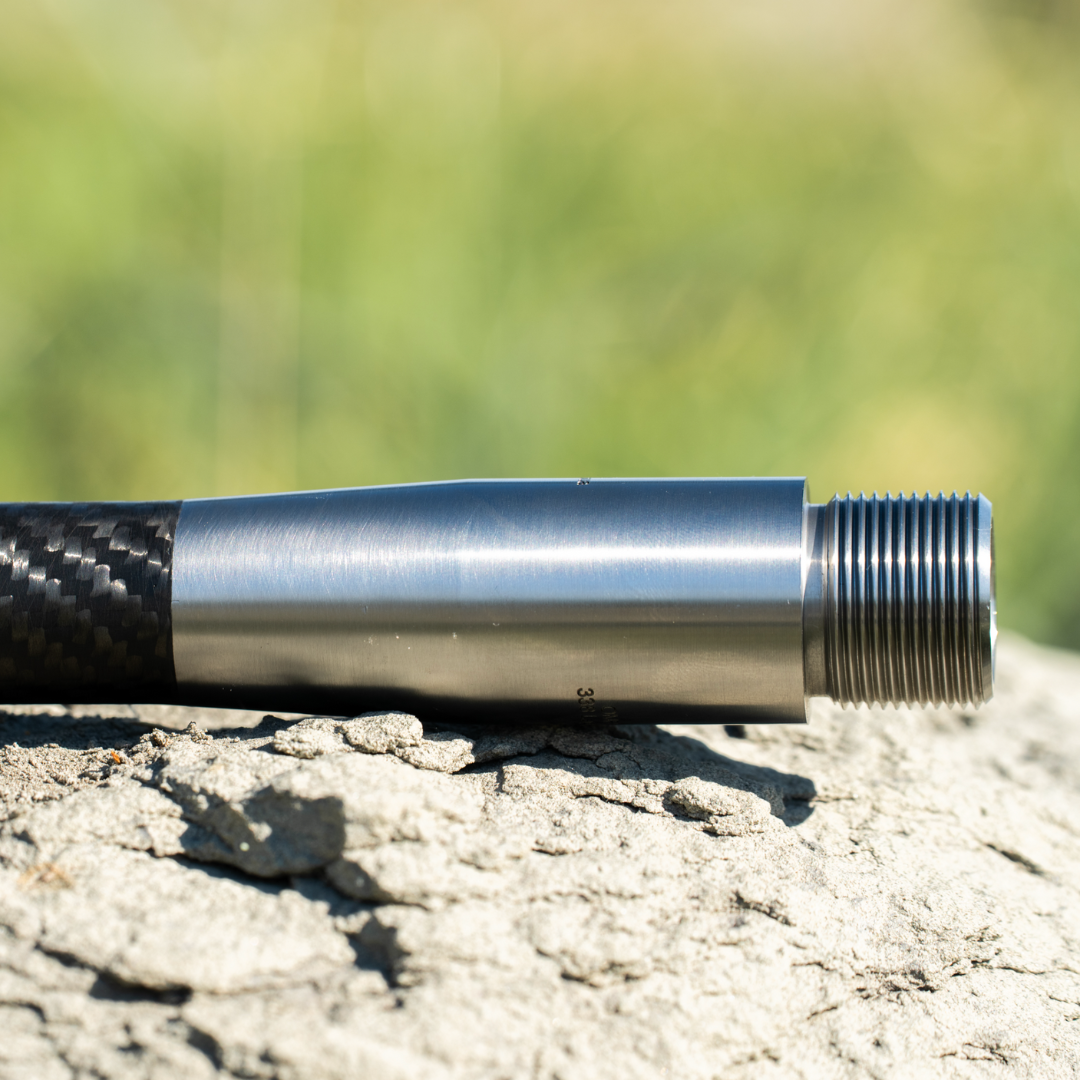

Muzzle Thread Close-Up

Shouldered Prefit Barrels

$879.00

OMR Shouldered Prefit Barrels are 100% guaranteed to properly head space with factory configured actions and bolts for all listed actions. Our Carbon Fiber Shouldered Prefit Barrels are custom built to your specifications.  All of our barrels have a magnum taper, which is 1” at the muzzle (Fits “Sendero Contour” stocks).  Our barrels come threaded for brake, cap or suppressor.

Made in Montana, USA

Please allow 2-3 weeks for us to build your custom barrel.

For ALL Remington 700, Howa 1500, and Weatherby Actions, we must have your action in hand, to insure proper head spacing. Once you place your order, OMR will email you shipping instructions for your action.
For ALL Zermatt Bighorn Origin RD3 Actions, we must have your action in hand, to insure proper head spacing. Once you place your order, OMR will email you shipping instructions for your action.
Add Thread Protector (+$40.00)
Add Stainless Brake (4.4 oz) (+$145.00)
Add Titanium Brake (2.0 oz) (+$199.00)
Add Wrench (+$20.00)
If you would like us to take care of installing your OMR Carbon Fiber Prefit Barrel, please select this option. You will need to ship us your action, bolt and recoil lug (if applicable), or your entire barreled action if you are unable to remove your current barrel. PLEASE BE ADVISED: we WILL NOT return your original barrel if we are removing it. Please remove your STOCK, RAIL, AND TRIGGER before shipping. We will send you an email, immediately after you place your order, with shipping instructions.
Add Action Wrench (+$85.00)
The OMR Action Wrench will not break. It does't come with a so called, "breaking point" like other cheap wrenches claim. OMR starts with 416 stainless bar stock, which is then inserted into our stare of the art 4th axis mill to be precisely machined to .002" of an inch. OMR uses a duel lug design which provides 2X's the surface area support in the raceway which eliminates any chance of side torque.
Black (+$100.00)
Flat Dark Earth (F.D.E.) (+$100.00)
Burnt Bronze (+$100.00)
Coyote Tan (+$100.00)
Patriot Brown (+$100.00)
Gun Metal Grey (+$100.00)
Sniper Green (+$100.00)
Sniper Grey (+$100.00)
Your barrel and any of the following items you order (examples: muzzle brake and/or thread protector) will be cerakoted in your choice of color. We DO NOT cerakote the carbon fiber on your barrel, just the steel portions.
Black (+$259.00)
Flat Dark Earth (F.D.E.) (+$259.00)
Burnt Bronze (+$259.00)
Coyote Tan (+$259.00)
Patriot Brown (+$259.00)
Gun Metal Grey (+$259.00)
Sniper Green (+$259.00)
Sniper Grey (+$259.00)
Your entire barreled action and any of the items you order with your OMR Shouldered Prefit Barrel, examples: muzzle brake and/or thread protector, will be cerakoted in your choice of color. Your entire bolt will be cerakoted in Elite Black. We DO NOT cerakote the carbon fiber on your barrel, just the steel portions. We will cerakote your rail and bottom metal if you ship them with your action. PLEASE NOTE: your RAIL must be removed from your action.
Product total
Options total
Grand total
Category:

Description

OMR Shouldered Prefit Barrels are 100% guaranteed to properly head space with factory configured actions and bolts for all listed actions. Our Carbon Fiber Shouldered Prefit Barrels are custom built to your specifications.  All of our barrels have a magnum taper, which is 1” at the muzzle (Fits “Sendero Contour” stocks).  Our barrels come threaded for brake, cap or suppressor.  If you are running yours suppressed, most likely your suppressor uses the 5/8″-24 muzzle threads, so be sure to choose that option.

The 3A thread fit (highest classification) has no allowance and smaller tolerances than the class 2A thread fit, resulting in a tighter fit ensuring proper muzzle device alignment.

All OMR carbon fiber barrels start with 416R stainless, match grade, button rifled, hand lapped, and stress relieved  blanks.  Every blank goes through our rigorous inspection process for tolerances, craftsmanship and material imperfections.  Match Grade bore must measure within .0005″ of our standard diameter and groove cannot vary in diameter more than .0003″ for the length of the barrel.  Once a blank passes this inspection, only then will it get carbon wrapped using the same state of the art materials and techniques that are employed in the Aerospace industry. We do all this to ensure that our customers receive the stiffest, most accurate, carbon fiber barrel available on the market today.

Important Note About Trued Actions:  OMR Shouldered Prefits WILL NOT work.  Specifically, if you have had any of the following work performed to your action: the bolt face trued, action body trued or lug work, we cannot guarantee that your barrel will head space correctly. OMR Shouldered Prefits will not work without needing a Gunsmith to check assembly and proper head space and additional chambering and or throat work may be required at owners expense.  Your best option is to start with one of our Carbon Fiber Blanks, and have your local Gunsmith chamber it to your action.

Easy to install:

  • Use an action specific wrench along with a quality barrel vise to install your OMR barrel.
  • OMR recommends to torque your barrel to 75-90 ft/lbs.
  • Use caliber specific Go/NoGo gauges before and after tightening the barrel nut to ensure proper headspace.  Can be rented from www.4Drendtal.com
  • Disclaimer of Liability:  Oregon Mountain Rifle Co assumes no liability for damage and or injuries that result in whole or in part from improper installation, product malfunctions, negligent, criminal, improper use, and reloaded or defective ammunition.

If you are not comfortable installing your Shouldered Carbon Fiber Prefit, please contact your local gunsmith and make sure they will do the install for you. If you or your gunsmith is not able to install the Prefit Barrel, please select the “OMR Prefit Barrel Installation” option at the checkout.  We will gladly help you with this.

Examples of actual barrel weights:

  • Shouldered Falkor Defiance Barrel: 7MM Rem Mag, 24″, 5/8″-24TPI = 3lbs, 0oz
Features of OMR Self-Timing Brake:

OMR Self Timing Muzzle Brakes, available in Titanium or Stainless Steel, have been engineered to provide the greatest recoil reduction of any brake on the market. OMR Self Timing Brakes are a great addition to your setup when wanting to remove your brake for use at the range, hunting or suppressor use. OMR Self Timing Brakes can be easily removed & installed at home. Made of Grade 5 Titanium or 416 stainless steel. Brakes are caliber specific and ready for install.

  • Brakes are 1″ in diameter to perfectly match OMR muzzle diameters for a smooth seam-free transition from carbon fiber to muzzle brake.
  • Available in 1/2”-28 TPI, 9/16”-28 TPI, and 5/8”-24 TPI.
  • Average Weight of the Titanium Self Timing Brake: 1.8 oz
  • Average Weight of the Stainless Steel Self Timing Brake: 3.5 oz
Features of OMR Muzzle Brake Wrench Specifications:

OMR Muzzle Brake Wrench is designed to not only make installation and removal easy, but it also protects your muzzle brake from scratches, dents, and gouges due to improper use.

  • Fits all OMR self-timing brakes
  • Protects Cerakote finish
  • Designed to be inserted into the first port of the brake, closest to the muzzle
  • Make install or removal simple
  • Wrench is designed to brake off it over torqued to help eliminate the changes of damaging muzzle threads, crown, and or barrel.
  • Made in Montana, USA
  • Made from 6061 Aluminum

Additional information

Weight 4 lbs
Action Type

Ruger, Bergara, Savage
Caliber

22 Creedmoor, 6 Creedmoor, 6.5 Creedmoor, 6.5 PRC, 270 WSM, 270 Sherman Short, 6.8 Western, 280 AI, 7mm Rem Mag, 7 PRC, 28 Nosler, 308 Win, 300 WSM, 300 Win Mag, 300 PRC, 300 RUM, 338 Lapua, 33 Nosler, 350 Legend, 450 Bushmaster, 375 Ruger
Barrel Length

16.5 IN, 18 IN, 20 IN, 22 IN, 24 IN, 26 IN, 28 IN
Shank

Non-Savage Action, Large Shank, Standard/Small Shank
Add Barrel Nut

No, Yes (+$50)
Add OMR Muzzle Cap

No, Yes (+$40)
Muzzle Brake Option

Add Stainless Self Timing Brake (+$145), Add Titanium Self Timing Brake (+$199), No Brake
Add Cerakote

None, Black (+$100), Burnt Bronze (+$100), Coyote Tan (+$100), Flat Dark Earth (+$100), Patriot Brown (+$100), Gun Metal Grey (+$100), Sniper Green (+$100), Sniper Grey (+$100)
