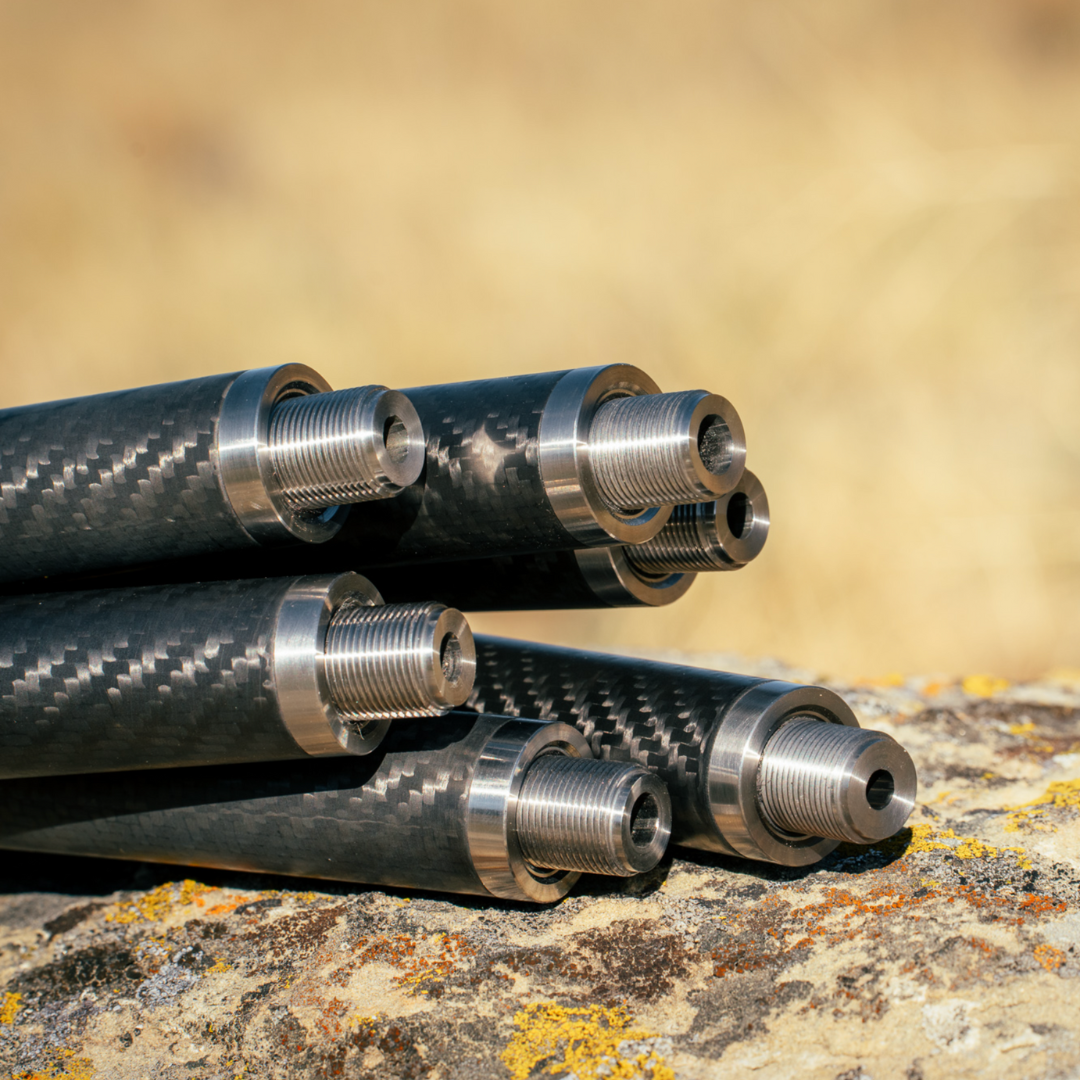

OMR Tikka Prefit Carbon Fiber Barrels
OMR Tikka Prefit Carbon Fiber Barrels - Image 2
OMR Tikka Prefit Carbon Fiber Barrels - Image 3

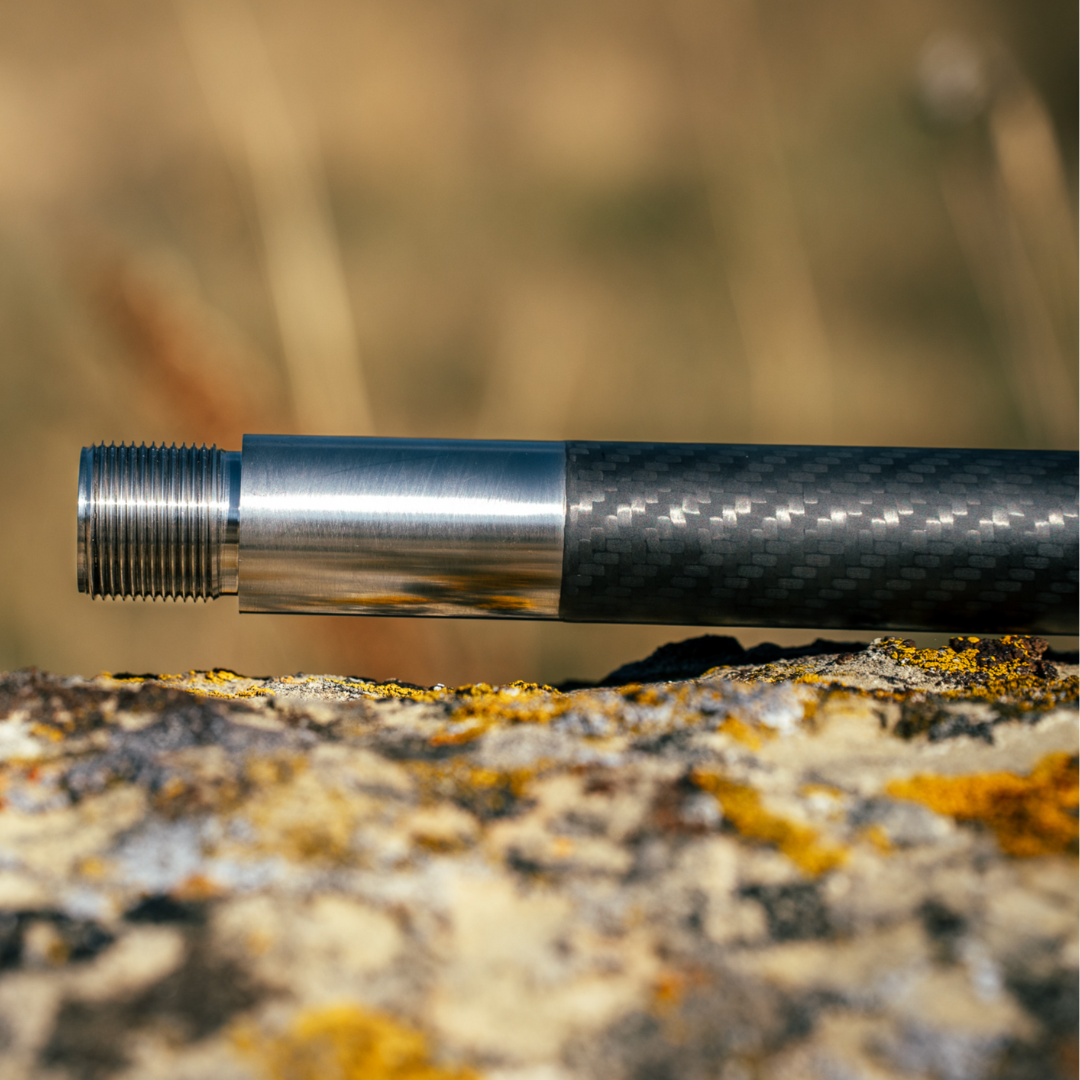

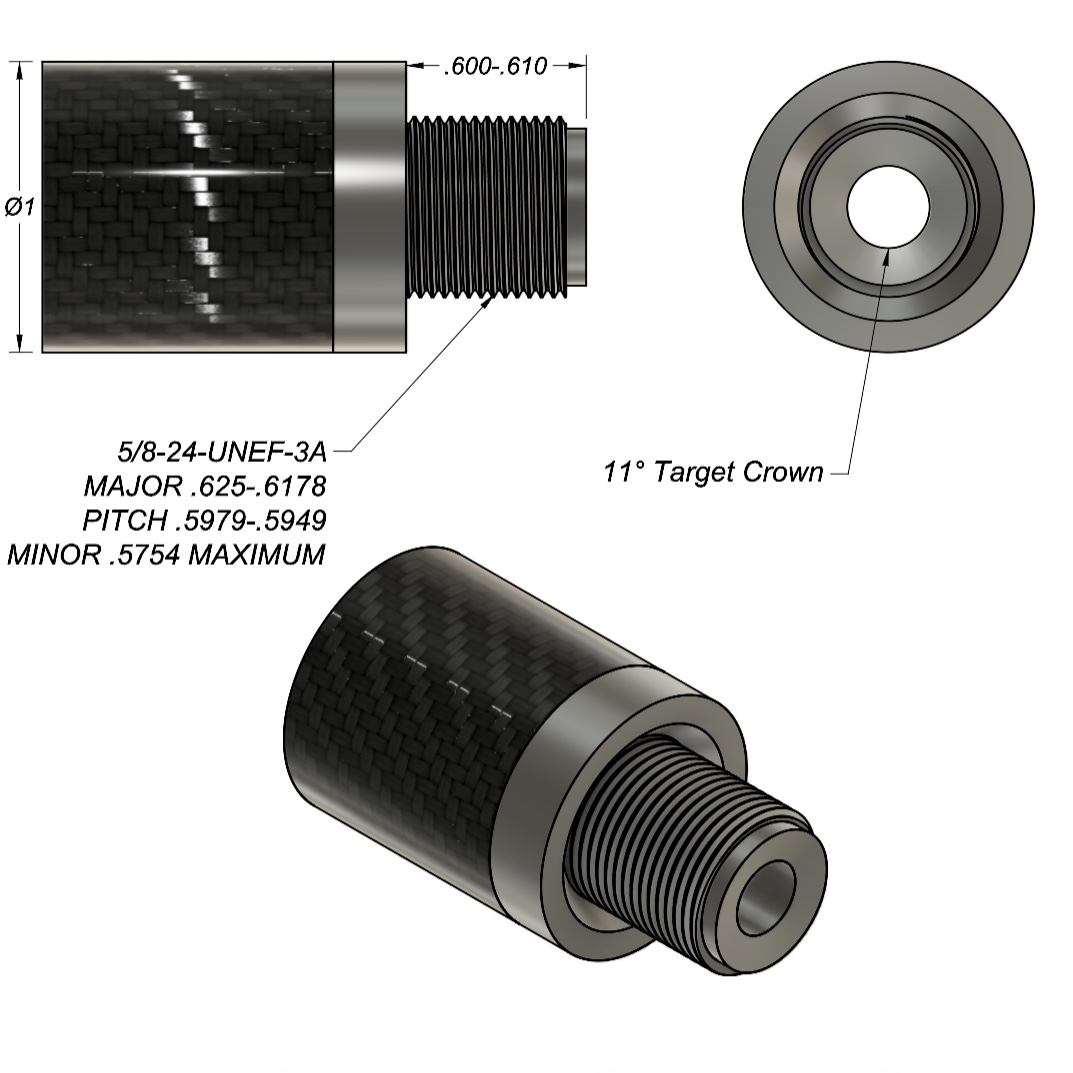

Muzzle Thread Close-Up
OMR Tikka Prefit Carbon Fiber Barrels - Image 5
OMR Tikka Prefit Carbon Fiber Barrels - Image 6
OMR Tikka Prefit Carbon Fiber Barrels - Image 7

OMR Tikka Prefit Carbon Fiber Barrels

$749.00

OMR Carbon Fiber Tikka Prefit Barrels are a true shouldered prefit,  guaranteed  to properly head space with factory spec Tikka rifles.  Our barrels come threaded for brake, cap or suppressor.  OMR guarantees 1/2 MOA with all our barrels.

Made in Montana, USA

Please allow 3-4 weeks for us to create your custom barrel.

If you would like us to take care of installing your OMR Carbon Fiber Prefit Barrel, please select this option. You will need to ship us your action and bolt, or your entire barreled action if you are unable to remove your current barrel. PLEASE BE ADVISED: we WILL NOT return your original barrel if we are removing it. Please remove your STOCK, RAIL, AND TRIGGER before shipping. We will send you an email, immediately after you place your order, with shipping instructions.
The OMR Tikka Action Wrench will not break. It does't come with a so called, "breaking point" like other cheap wrenches claim. OMR starts with 416 stainless bar stock, which is then inserted into our stare of the art 4th axis mill to be precisely machined to .002" of an inch. OMR uses a duel lug design which provides 2X's the surface area support in the raceway which eliminates any chance of side torque.
Choose your style
Your barrel and any of the items you order with it, examples: barrel nut, muzzle brake and/or thread protector, will be cerakoted in your choice of color. We DO NOT cerakote the carbon fiber on your barrel, just the steel portions.
Your entire barreled action and any of the items you order with your OMR Prefit Barrel, examples: barrel nut, muzzle brake and/or thread protector, will be cerakoted in your choice of color. Your entire bolt will be cerakoted in Elite Black. We DO NOT cerakote the carbon fiber on your barrel, just the steel portions. We will cerakote your rail and bottom metal if you ship them with your action. PLEASE NOTE: your RAIL must be removed from your action.
Product total
Options total
Grand total
Category:

Description

OMR Prefit Barrels are 100% guaranteed to properly head space with factory configured actions and bolts for all listed actions.  Our Carbon Fiber Prefit Barrels are custom built to your specifications.   All of OMR’s barrels have a magnum taper, which is 1” at the muzzle (Fits Sendero Contour stocks) .   OMR Tikka Prefits are a true shouldered prefit,  guaranteed  to properly head space with factory spec Tikka rifles.  Our barrels come threaded for brake, cap or suppressor.  If you are running yours suppressed, most likely your suppressor uses 5/8″-24 muzzle threads, so be sure to choose that option.

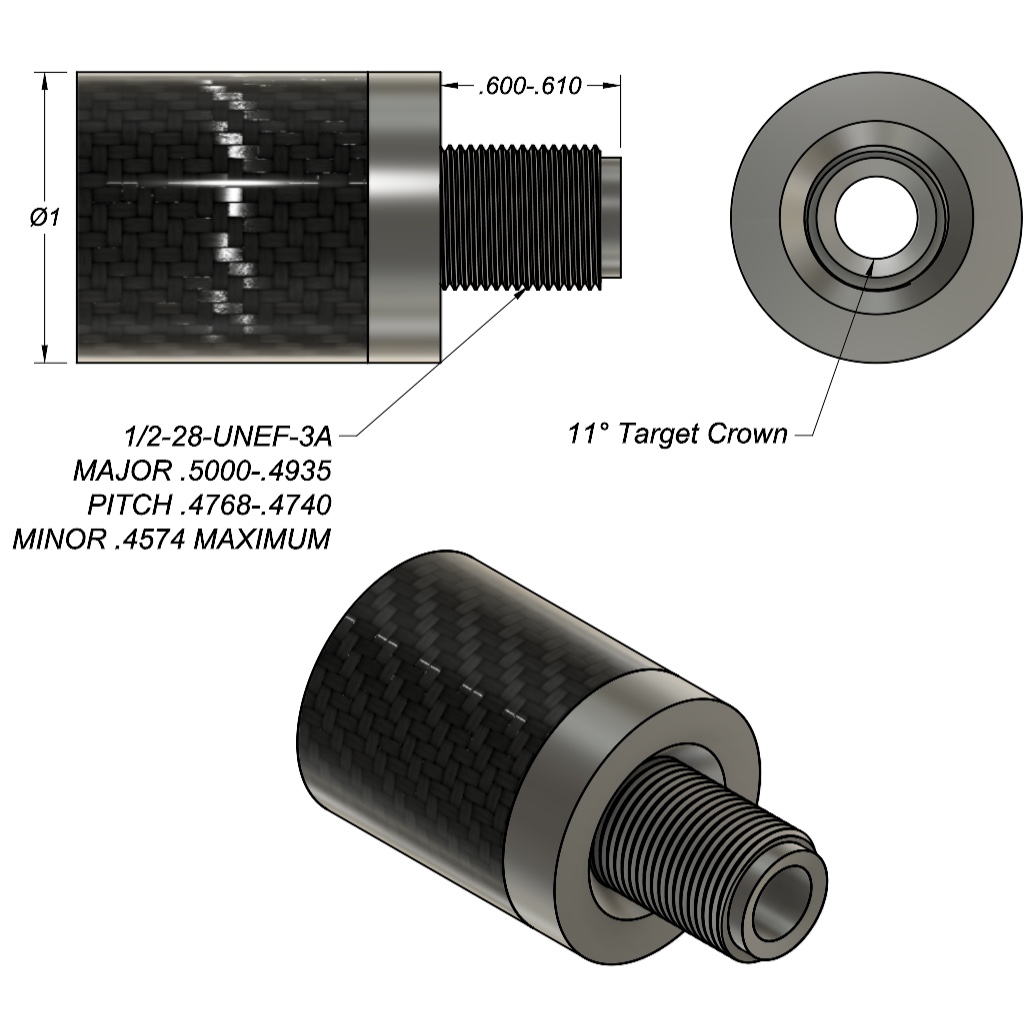

The 3A thread fit (highest classification) has no allowance and smaller tolerances than the class 2A thread fit, resulting in a tighter fit ensuring proper muzzle device alignment.

Important Note: OMR Tikka Carbon Fiber Prefit Barrels are compatible for your Tikka T3/T3X, Tac A1 and Sako 85 S, 85 M, 85 L actions.

All OMR carbon fiber barrels start with 416R stainless, match grade, button rifled, hand lapped, and stress relieved  blanks.  Every blank goes through our rigorous inspection process for tolerances, craftsmanship and material imperfections.  Match Grade bore must measure within .0005″ of our standard diameter and groove cannot vary in diameter more than .0003″ for the length of the barrel.  Once a blank passes this inspection, only then will it get carbon wrapped using the same state of the art materials and techniques that are employed in the Aerospace industry. We do all this to ensure that our customers receive the stiffest, most accurate, carbon fiber barrel available on the market today.

Important Note About Trued Actions:  OMR Prefits WILL NOT work.  Specifically, if you have had any of the following work performed to your action: the bolt face trued, action body trued or lug work, we cannot guarantee that your barrel will head space correctly. OMR Prefits will not work without needing a Gunsmith to check assembly and proper head space and additional chambering and or throat work may be required at owners expense.  Your best option is to start with one of our Carbon Fiber Blanks, and have your local Gunsmith chamber it to your action.

Easy to install:

  • Use an action specific wrench, along with a quality barrel vise to install your OMR Carbon Fiber Barrel.
  • OMR recommends to torque your barrel to 75-90 ft/lbs.
  • Use caliber specific Go/NoGo gauges before and after tightening the Tikka barrel itself, to ensure proper headspace.  These can be rented from www.4Drendtal.com
  • Disclaimer of Liability:  Oregon Mountain Rifle Co assumes no liability for damage and or injuries that result in whole or in part from improper installation, product malfunctions, negligent, criminal, improper use, and reloaded or defective ammunition.

If you are not comfortable installing your Carbon Fiber Prefit, please contact your local gunsmith and make sure they will do the install for you. If you or your gunsmith is not able to install your Prefit Barrel, please select the “OMR Prefit Barrel Installation” option.  We will gladly help you with this.

Examples of actual barrel weights:

  • Tikka 22 Creedmoor, 24″, 5/8″-24TPI = 3lbs, 1oz
  • Tikka 7MM 24”, 5/8″-24TPI = 3lbs, 0oz
  • Tikka 7MM 24”, 9/16″-28TPI = 2lbs, 12oz
  • Tikka 300 WIN 24″,  5/8″-24TPI = 2lbs, 15oz
Features of OMR Self-Timing Brake:

OMR Self Timing Muzzle Brakes, available in Titanium or Stainless Steel, have been engineered to provide the greatest recoil reduction of any brake on the market. OMR Self Timing Brakes are a great addition to your setup when wanting to remove your brake for use at the range, hunting or suppressor use. OMR Self Timing Brakes can be easily removed & installed at home. Made of Grade 5 Titanium or 416 stainless steel. Brakes are caliber specific and ready for install.

  • Brakes are 1″ in diameter to perfectly match OMR muzzle diameters for a smooth seam-free transition from carbon fiber to muzzle brake.
  • Available in 1/2”-28 TPI, 9/16”-28 TPI, and 5/8”-24 TPI.
  • Average Weight of the Titanium Self Timing Brake: 1.8 oz
  • Average Weight of the Stainless Steel Self Timing Brake: 3.5 oz

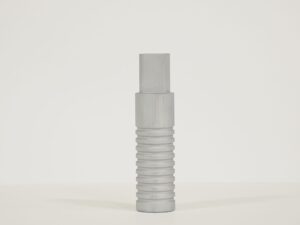

Features of OMR Muzzle Brake Wrench Specifications:

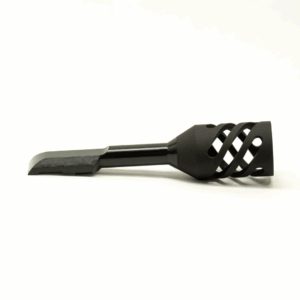

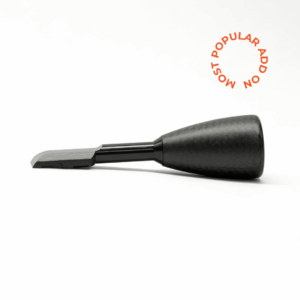

OMR Muzzle Brake Wrench is designed to not only make installation and removal easy, but it also protects your muzzle brake from scratches, dents, and gouges due to improper use.

  • Fits all OMR self-timing brakes
  • Protects Cerakote finish
  • Designed to be inserted into the first port of the brake, closest to the muzzle
  • Make install or removal simple
  • Wrench is designed to brake off it over torqued to help eliminate the changes of damaging muzzle threads, crown, and or barrel.
  • Made in Montana
  • Made from 6061 Aluminum

Additional information

Weight 4 lbs
Action Type

Ruger, Bergara, Savage
Caliber

22 Creedmoor, 6 Creedmoor, 6.5 Creedmoor, 6.5 PRC, 270 WSM, 270 Sherman Short, 6.8 Western, 280 AI, 7mm Rem Mag, 7 PRC, 28 Nosler, 308 Win, 300 WSM, 300 Win Mag, 300 PRC, 300 RUM, 338 Lapua, 33 Nosler, 350 Legend, 450 Bushmaster, 375 Ruger
Barrel Length

16.5 IN, 18 IN, 20 IN, 22 IN, 24 IN, 26 IN, 28 IN
Shank

Non-Savage Action, Large Shank, Standard/Small Shank
Add Barrel Nut

No, Yes (+$50)
Add OMR Muzzle Cap

No, Yes (+$40)
Muzzle Brake Option

Add Stainless Self Timing Brake (+$145), Add Titanium Self Timing Brake (+$199), No Brake

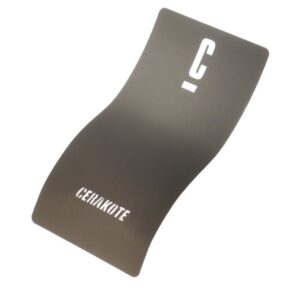

Add Cerakote

None, Black (+$100), Burnt Bronze (+$100), Coyote Tan (+$100), Flat Dark Earth (+$100), Patriot Brown (+$100), Gun Metal Grey (+$100), Sniper Green (+$100), Sniper Grey (+$100)
